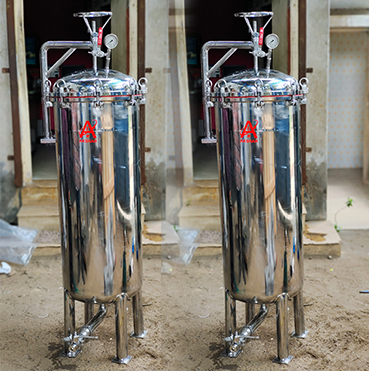

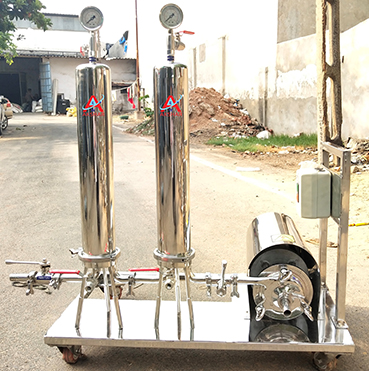

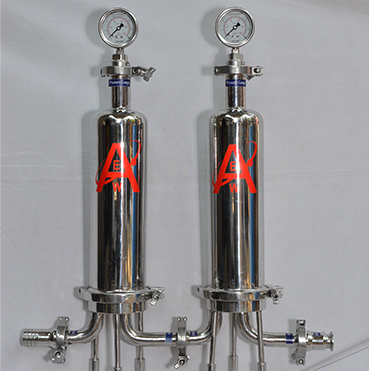

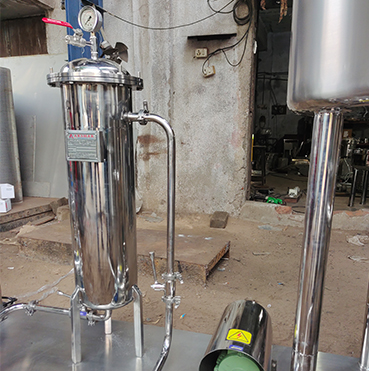

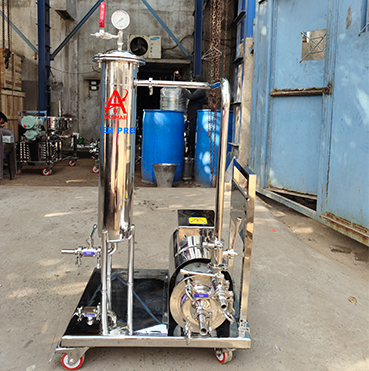

SS Cartridge Filter Housing
FILTER HOUSING

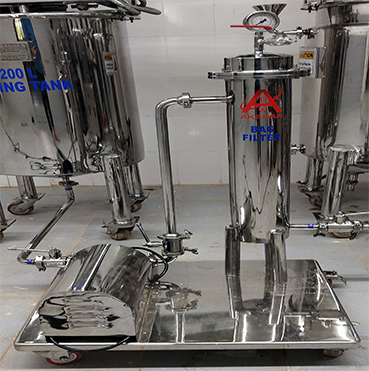

SS Bag Filter Housing
FILTER HOUSING
SS Cartridge Filter Housing
FILTER HOUSING
SS Bag Filter Housing
FILTER HOUSING
Bag Filter 4x20
BAG FILTER
Bag Filter 7x17
BAG FILTER
Bag Filter
BAG FILTER
Company Facts
00
+Countries Presence
00
+Satisfied Clients
00
+Machines Installed
00
+Our Employees
Our Products

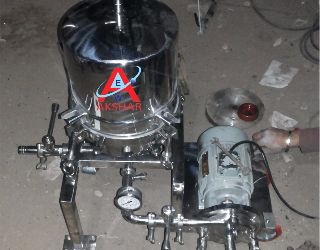

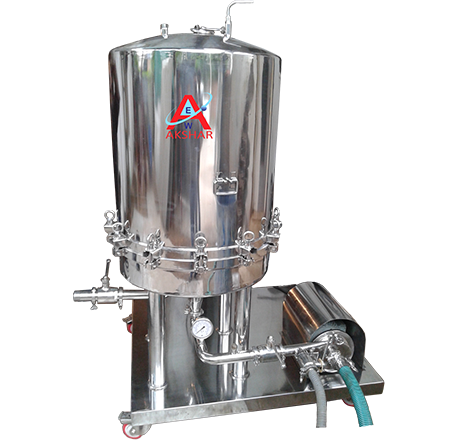

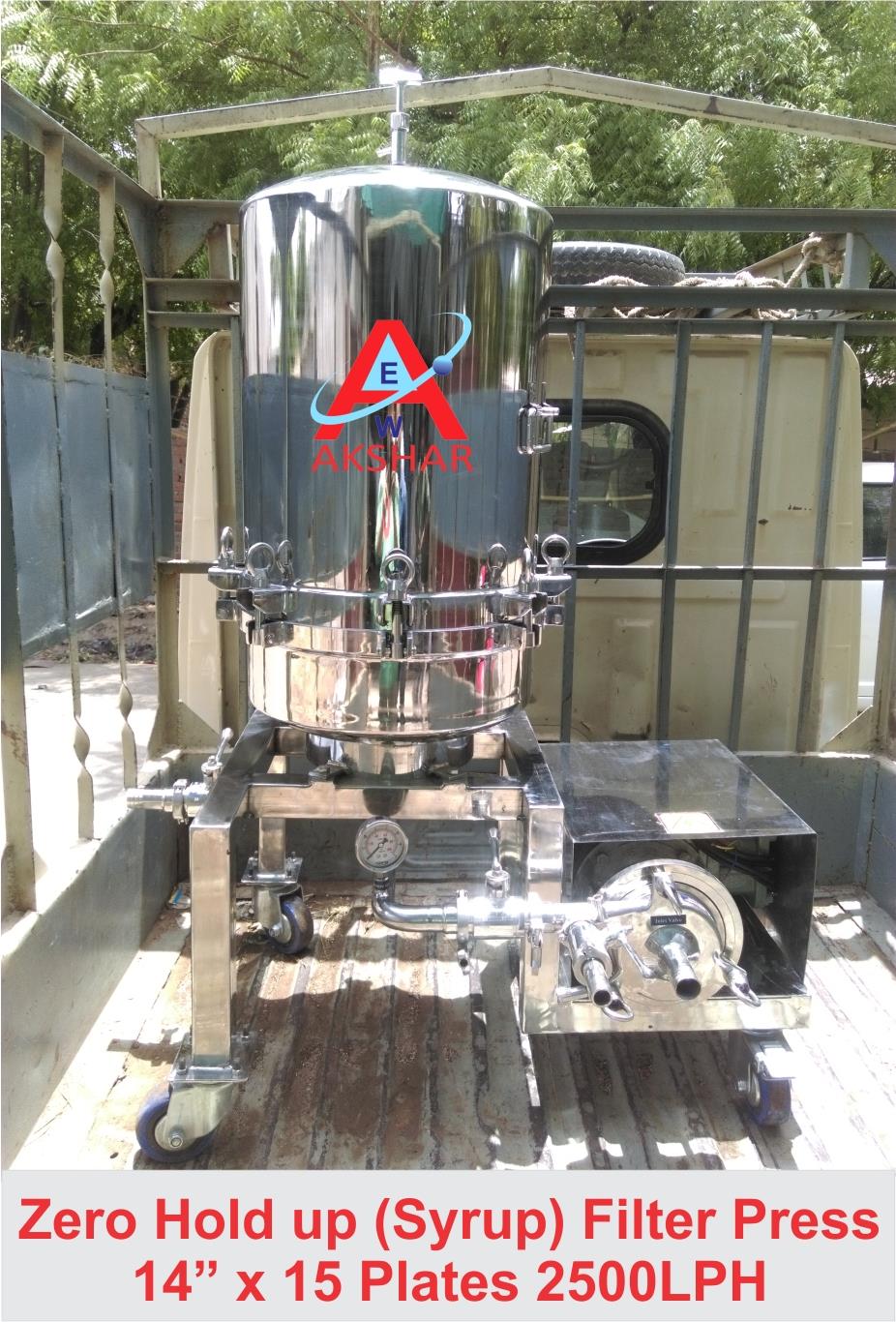

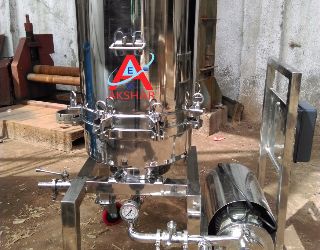

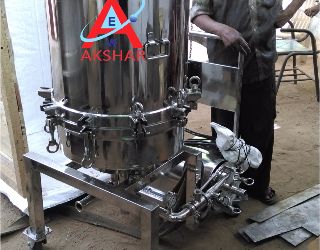

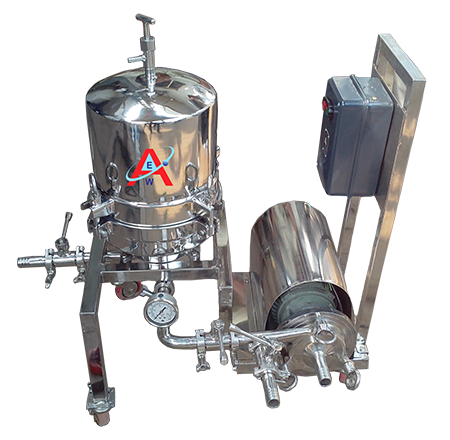

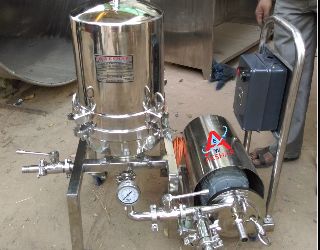

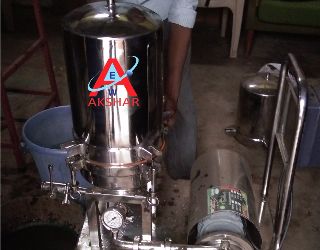

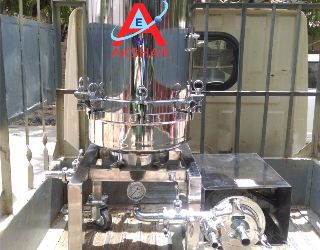

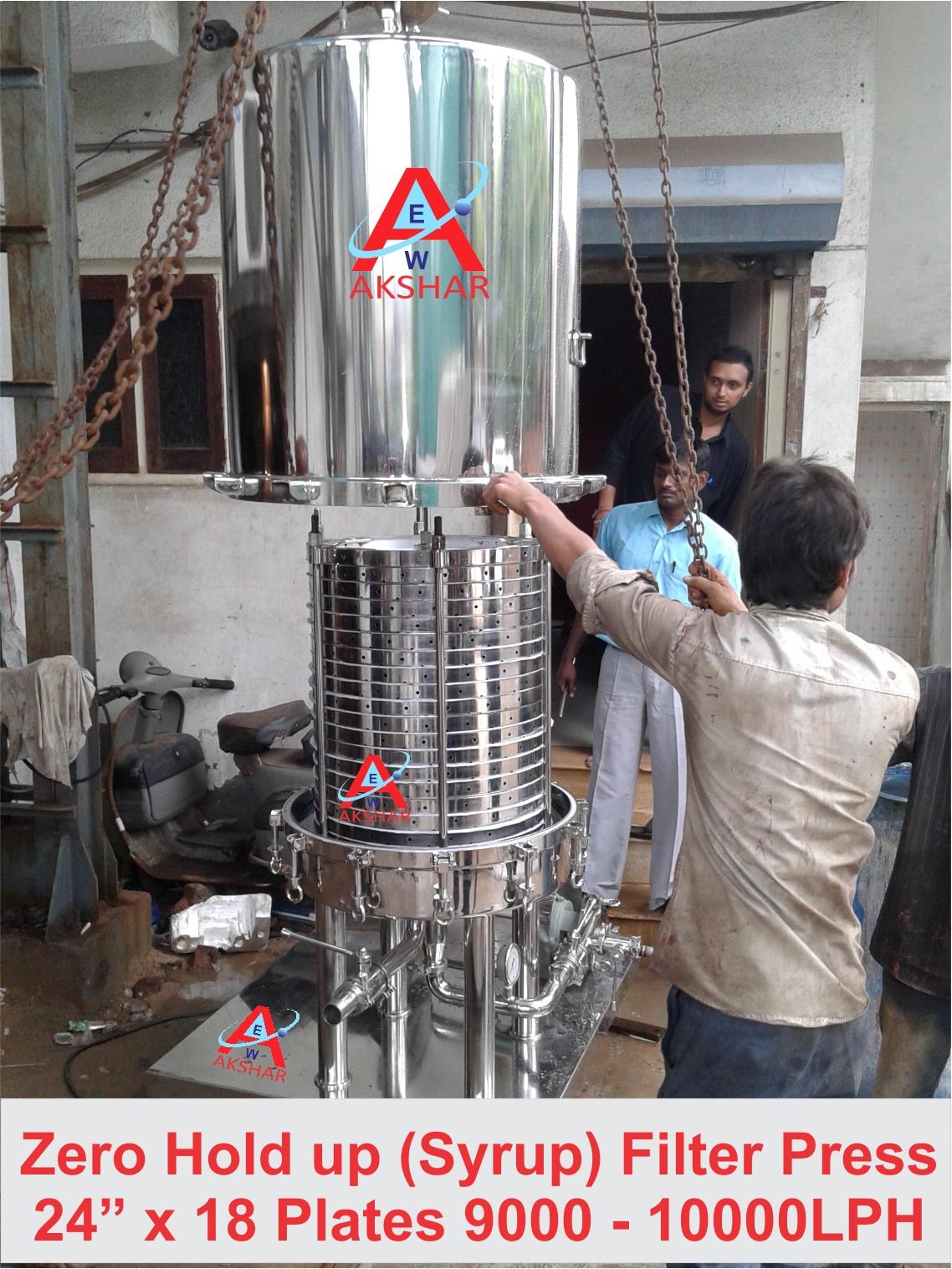

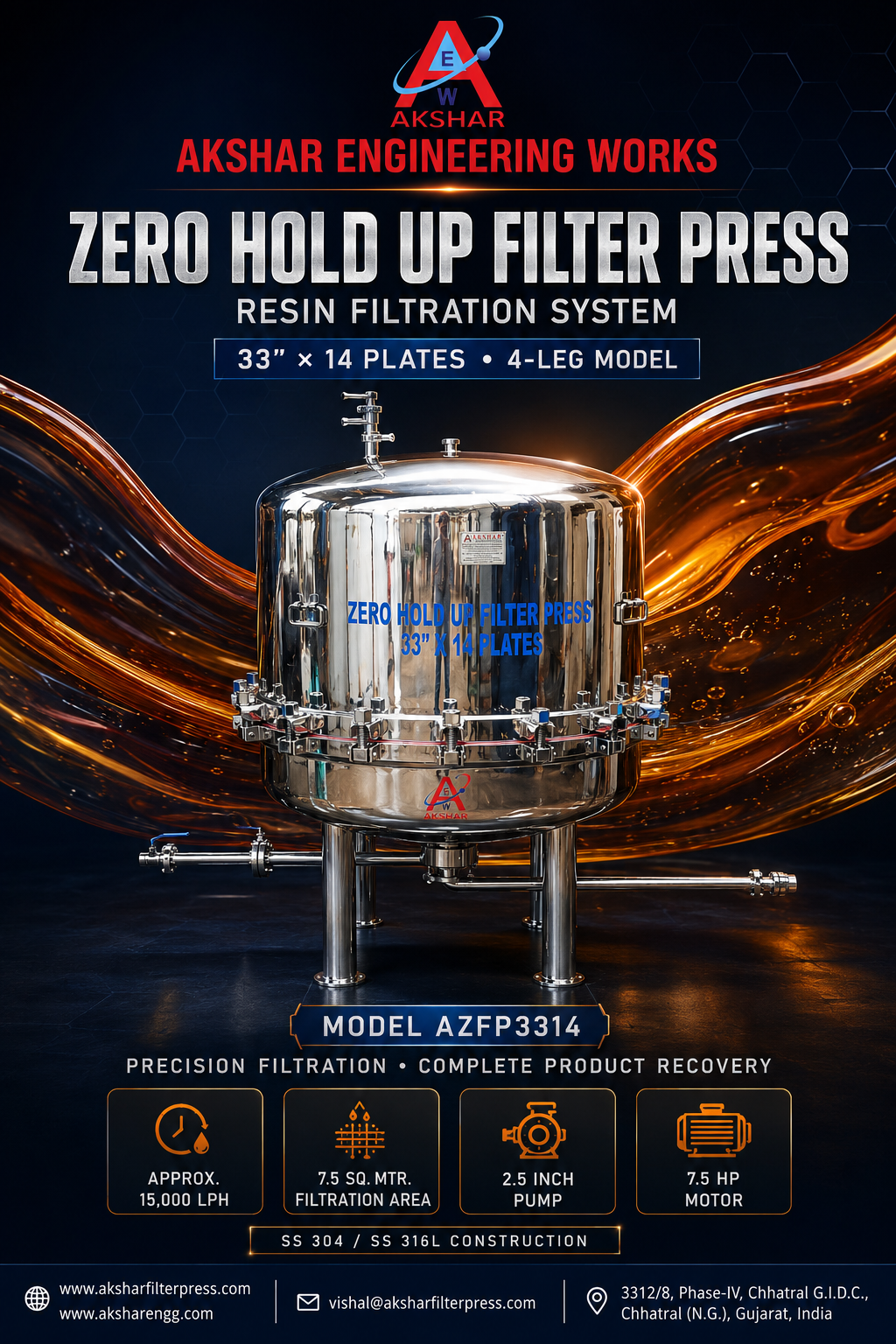

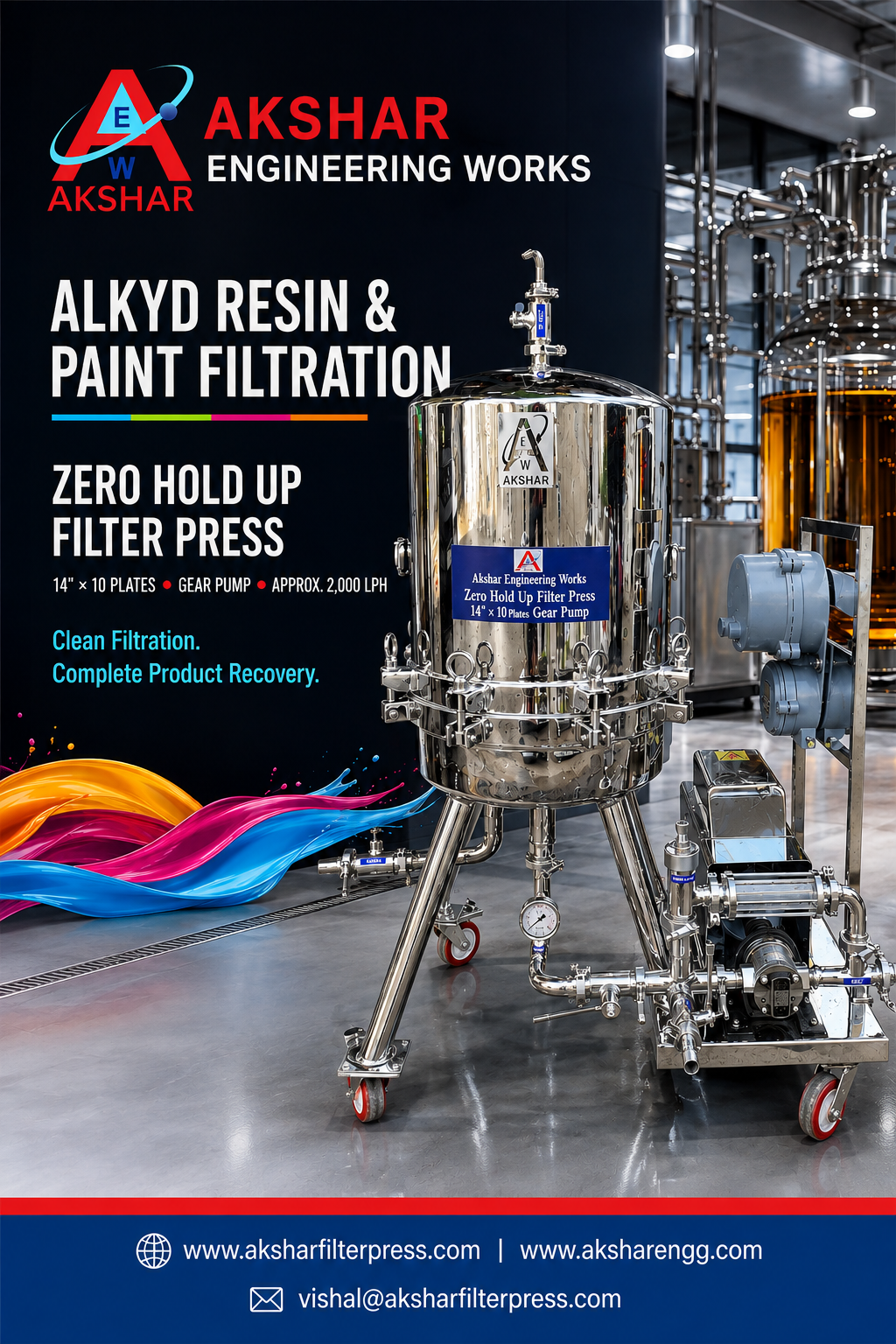

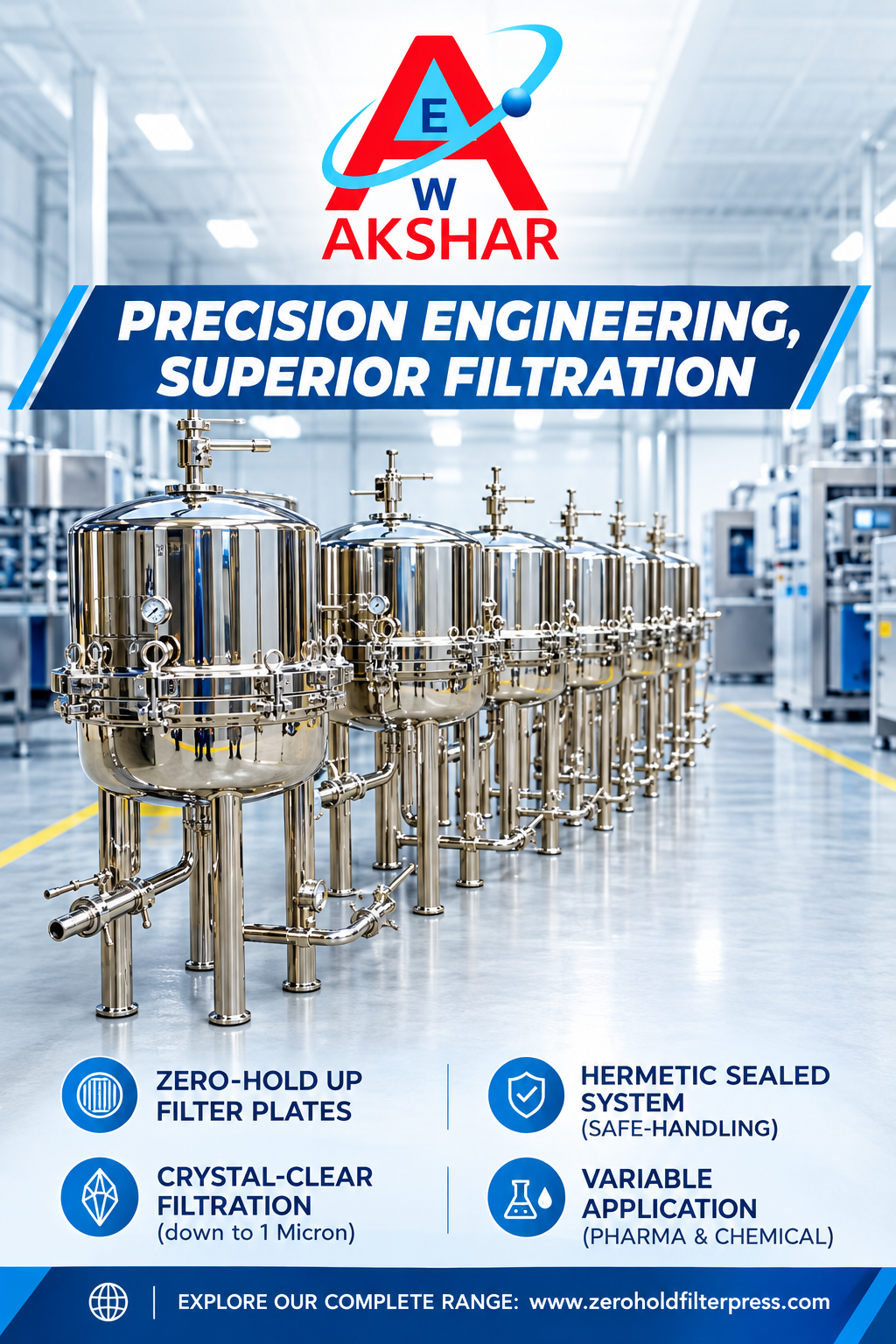

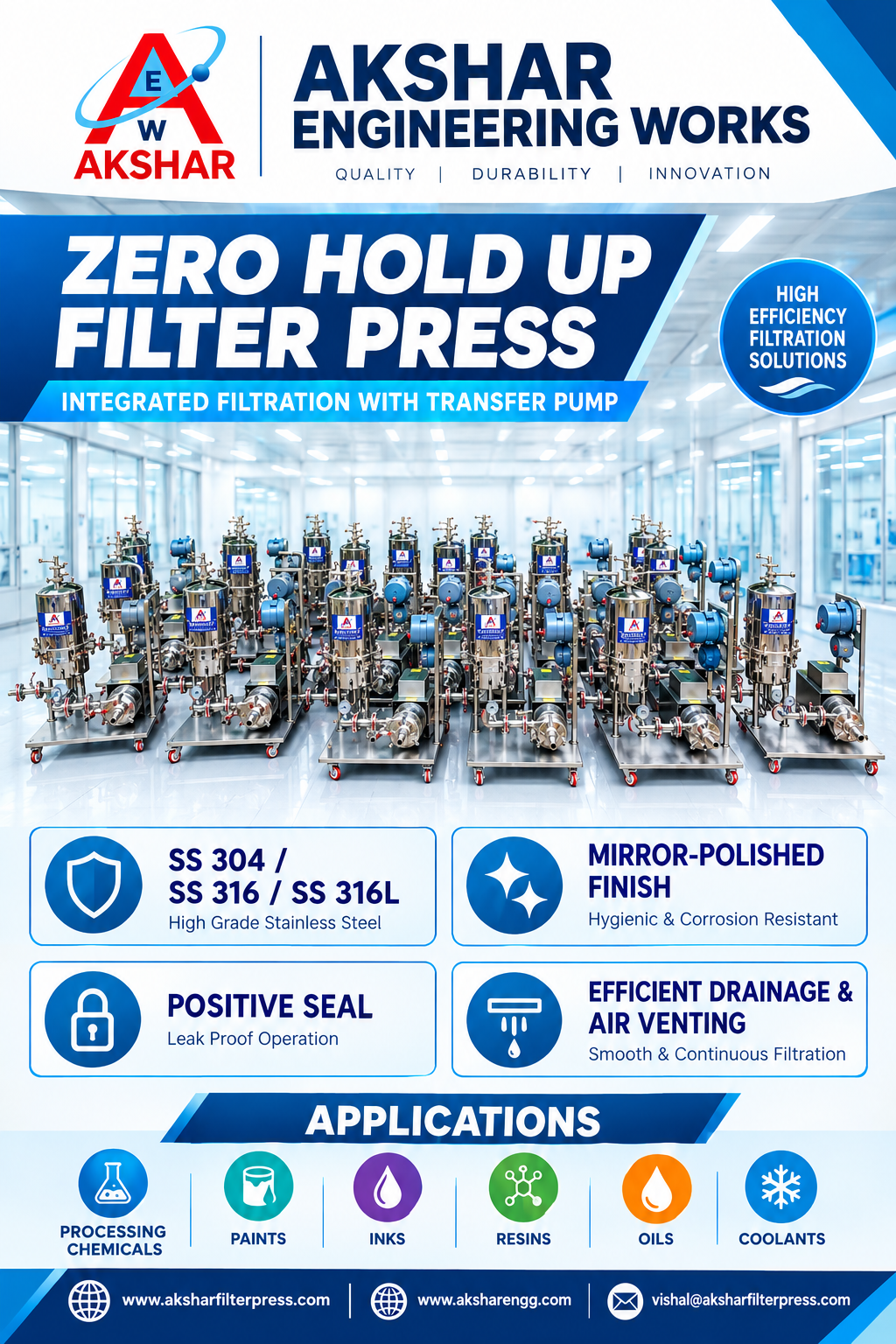

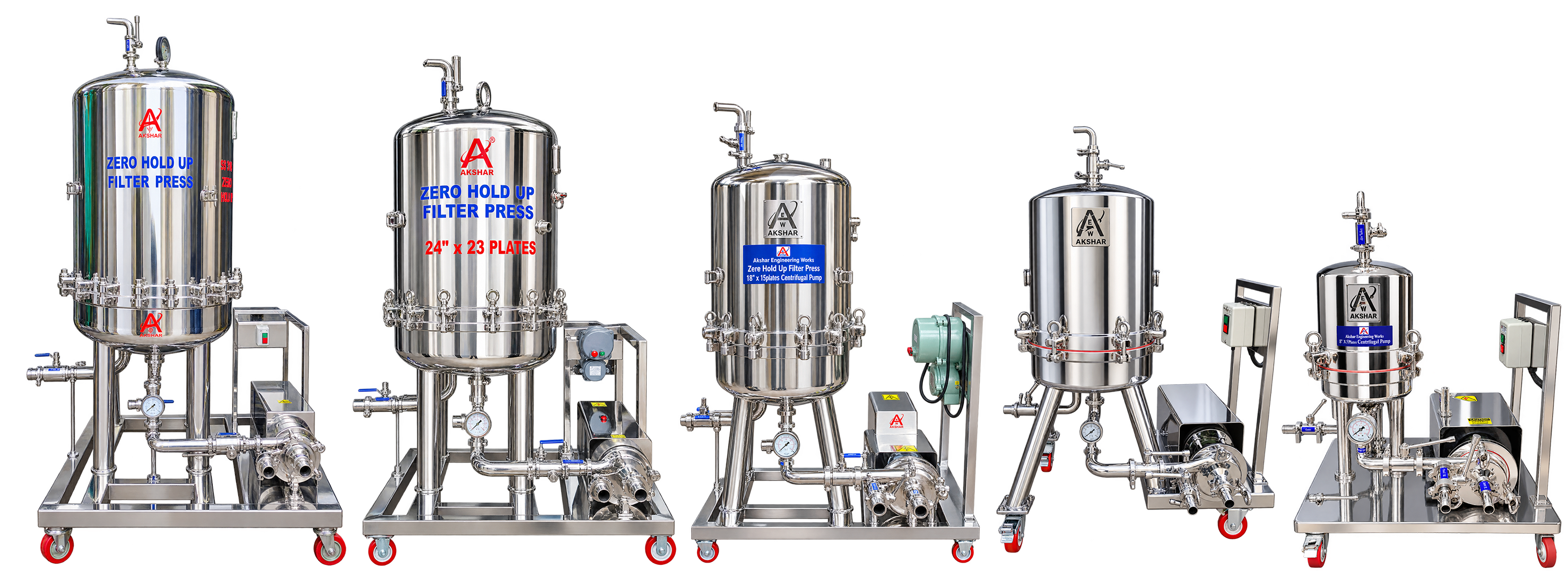

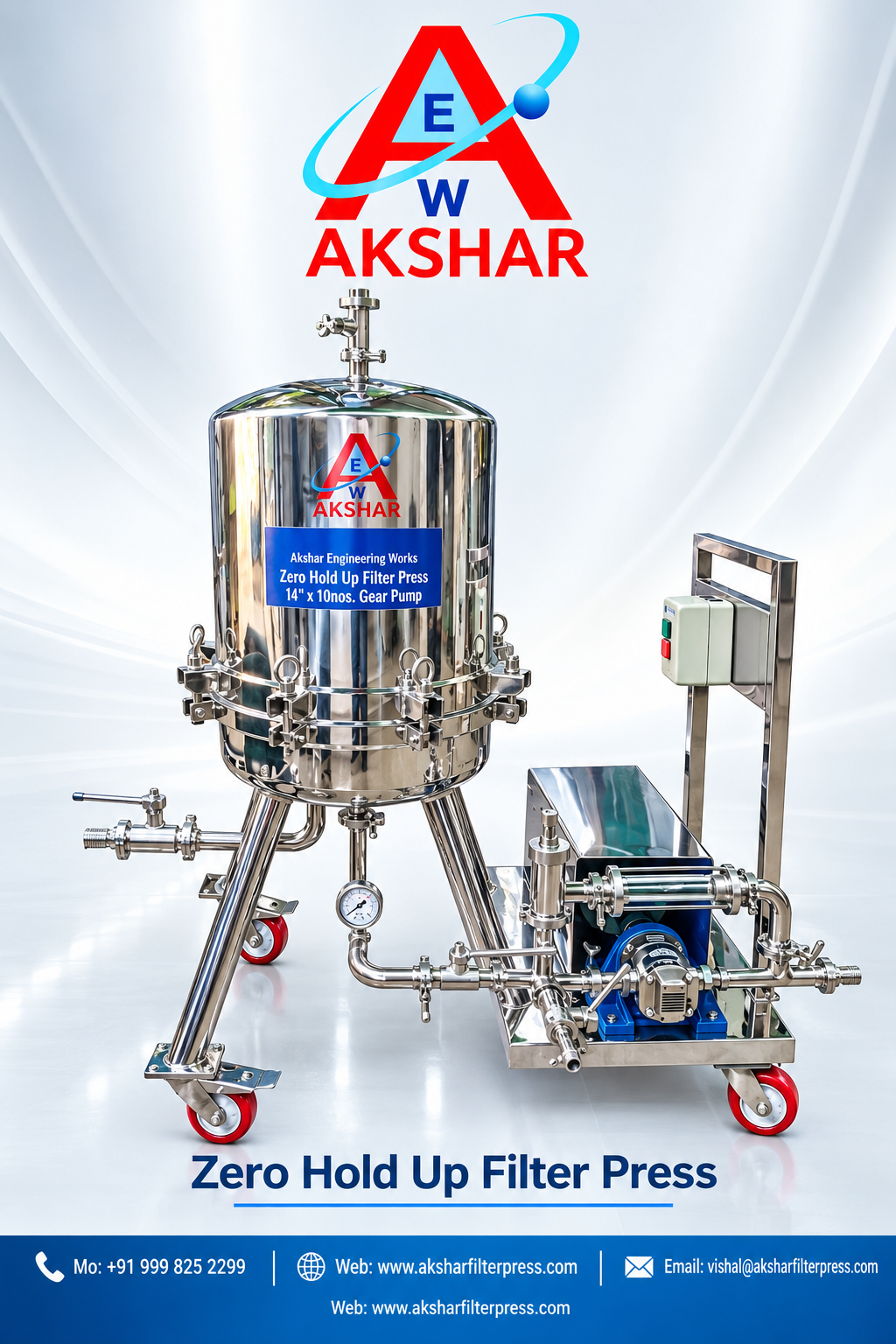

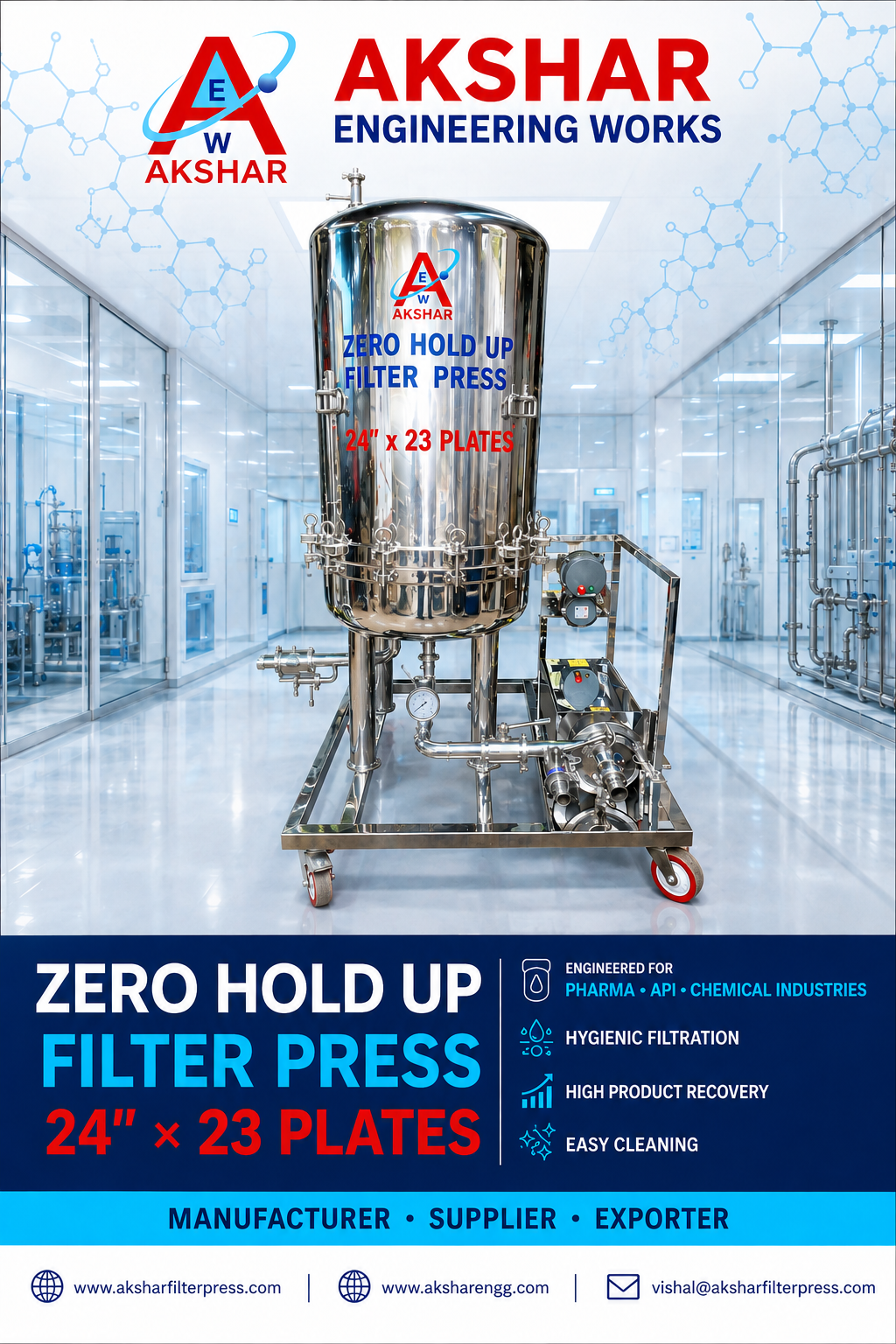

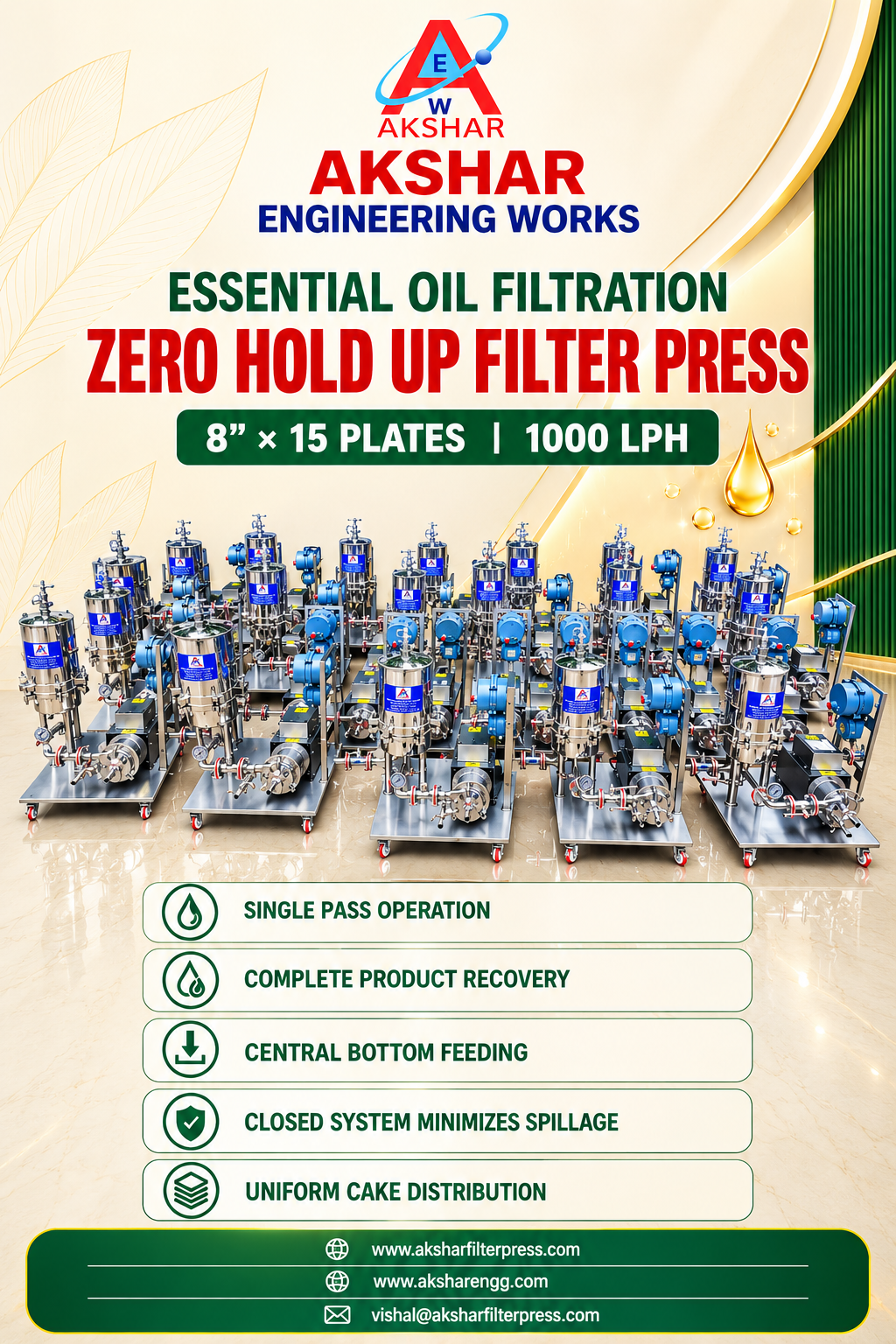

ZERO HOLD UP FILTER PRESS

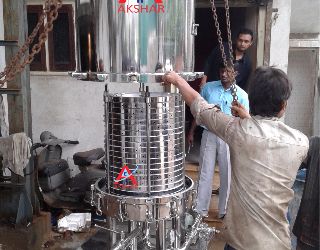

The Akshar Engineering Works – manufacturer and supplier of zero hold up filter press in India that is made up of high quality stainless steel having customized finished design. The cartridge assembly consists of plates, perforated screens, spacers and filter media stands on S.S. trolley. The whole assembly complete with attached pump and pipe lines through welding.
Operations
The zero hold up filter press having exactly the opposite direction of flow of liquid to the flow in standard filter. The unfiltered liquid is fed into central part of the machine giving high pressure from bottom inlet. The filter media filters the liquid when the whole liquid spreads out equally on each plate. Solids remain on filter media and filtrate liquid collects in the shell, which then comes out through the outlet. After the completing of filtration process the cake is cleaned from filter material and can be recycled.
-
Complete filtration process without any hold up
-
Single pass filtration with no solid bypass
-
Proper sealing which allows filtration of toxic, hazardous and explosive liquids
-
Available in various sizes and different diameters having numerous number of plates
-
8”, 14”, 18”, 24”, 33”
-
The opposite direction of flow saves large time and cost
-
Full batch recovery, no need of separate scavenging system
-
Available with different diameters and numbers of plates GMP model stands on SS trolley Manufactured using quality raw material such as S.S. 304/316/316L M.O.C
-
Two filter plates are available – Deep and Shallow
The zero hold up filter press having exactly the opposite direction of flow of liquid to the flow in standard filter. The unfiltered liquid is fed into central part of the machine giving high pressure from bottom inlet. The filter media filters the liquid when the whole liquid spreads out equally on each plate. Solids remain on filter media and filtrate liquid collects in the shell, which then comes out through the outlet. After the completing of filtration process the cake is cleaned from filter material and can be recycled.
| Model No | Dia of Plates (inches) |
No of Plates |
Heights of Plates (mm) |
Filtration Area (Sq. Mtr.) |
Cake Holding Capacity (rft) |
Flow Rate ~ (ltrs/hr) |
Size of Pump |
Motor (hp) |
|---|---|---|---|---|---|---|---|---|
| AZFPF84 | 8 | 4 | 25 | 0.132 | 2.5 | 300 | 0.5" | 1.0 |

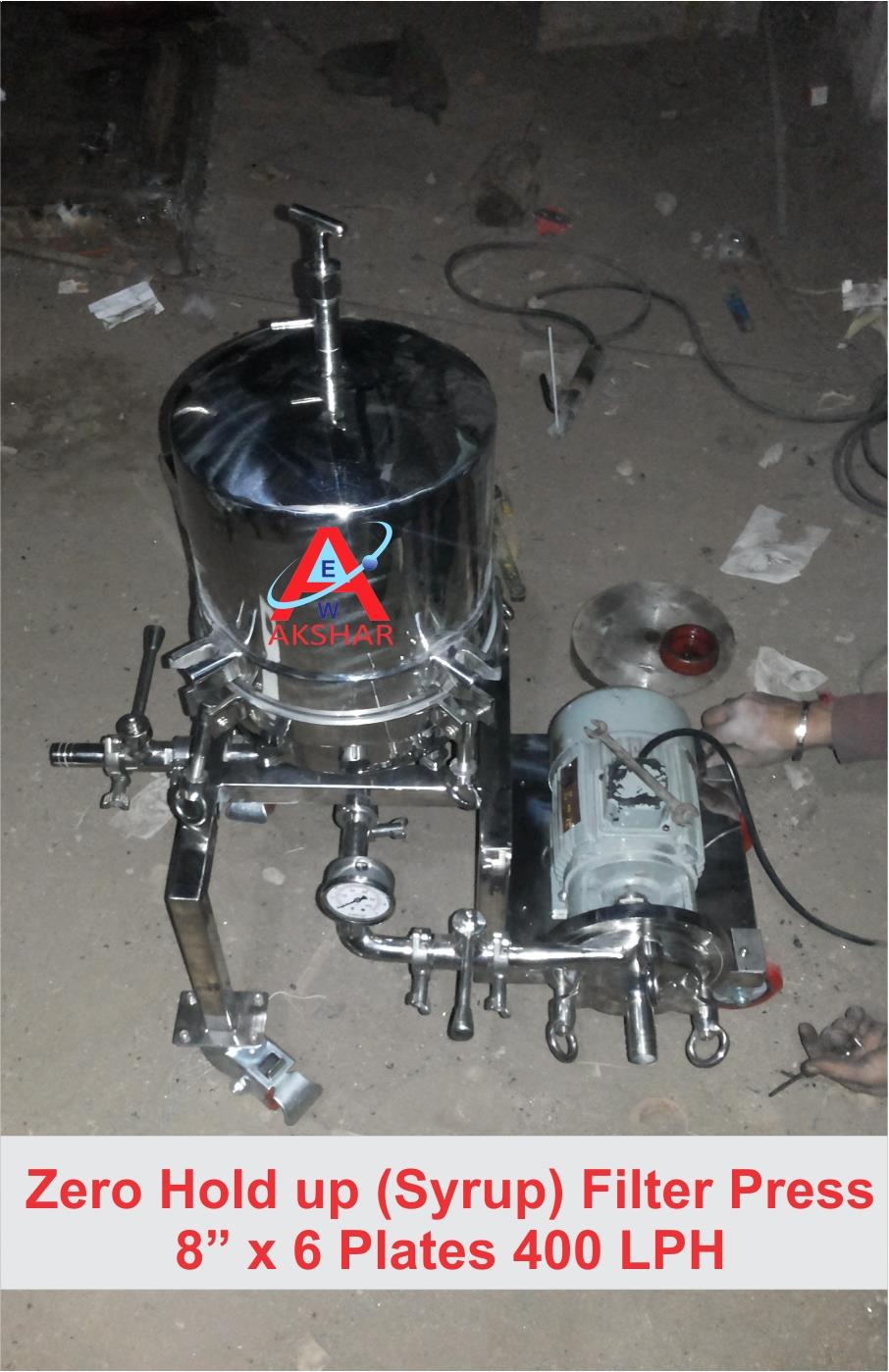

| AZFPF86 | 8 | 6 | 25 | 0.198 | 3.9 | 400 | 0.5" | 1.0 |

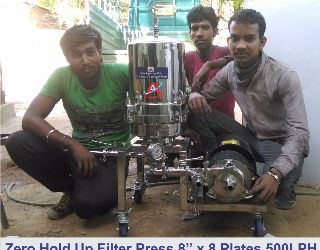

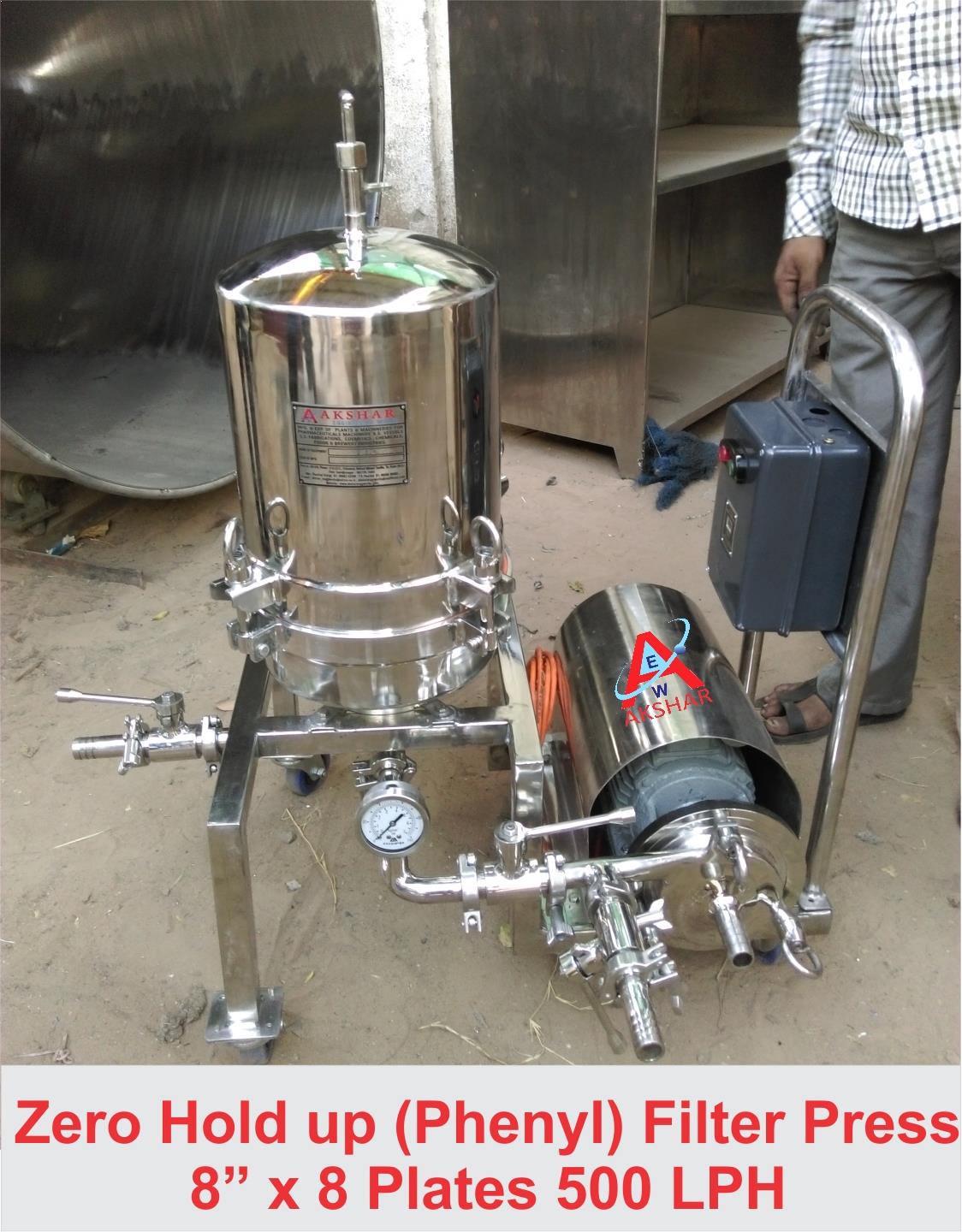

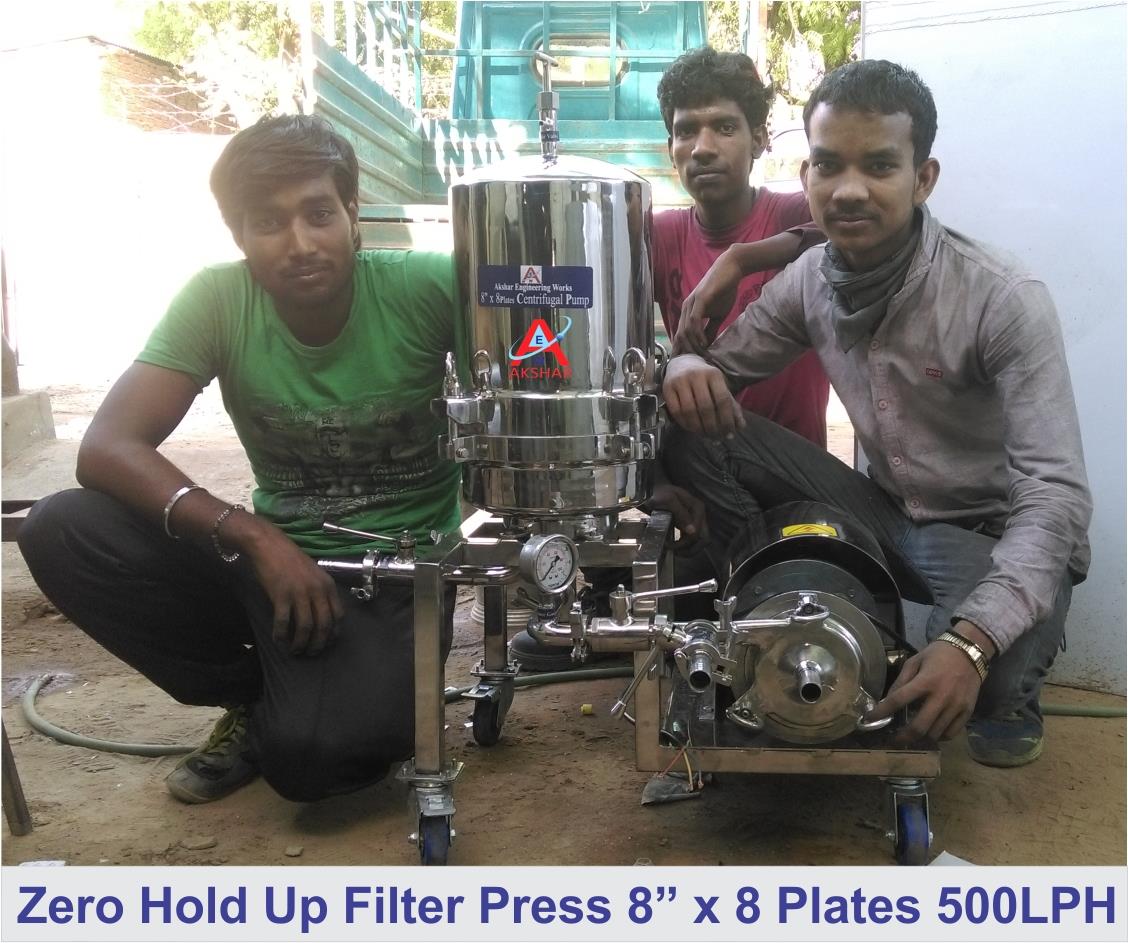

| AZFPF88 | 8 | 8 | 25 | 0.254 | 4.95 | 500 | 0.5" | 1.0 |
| AZFP144 | 14 | 4 | 38 | 0.378 | 12.9 | 700 | 1.0" | 2.0 |
| AZFP146 | 14 | 6 | 38 | 0.567 | 17.2 | 1200 | 1.0" | 2.0 |
| AZFP148 | 14 | 8 | 38 | 0.756 | 23.5 | 1600 | 1.0" | 2.0 |

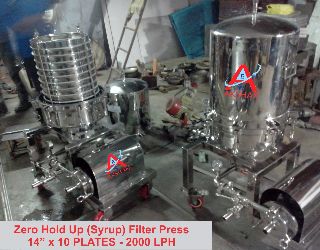

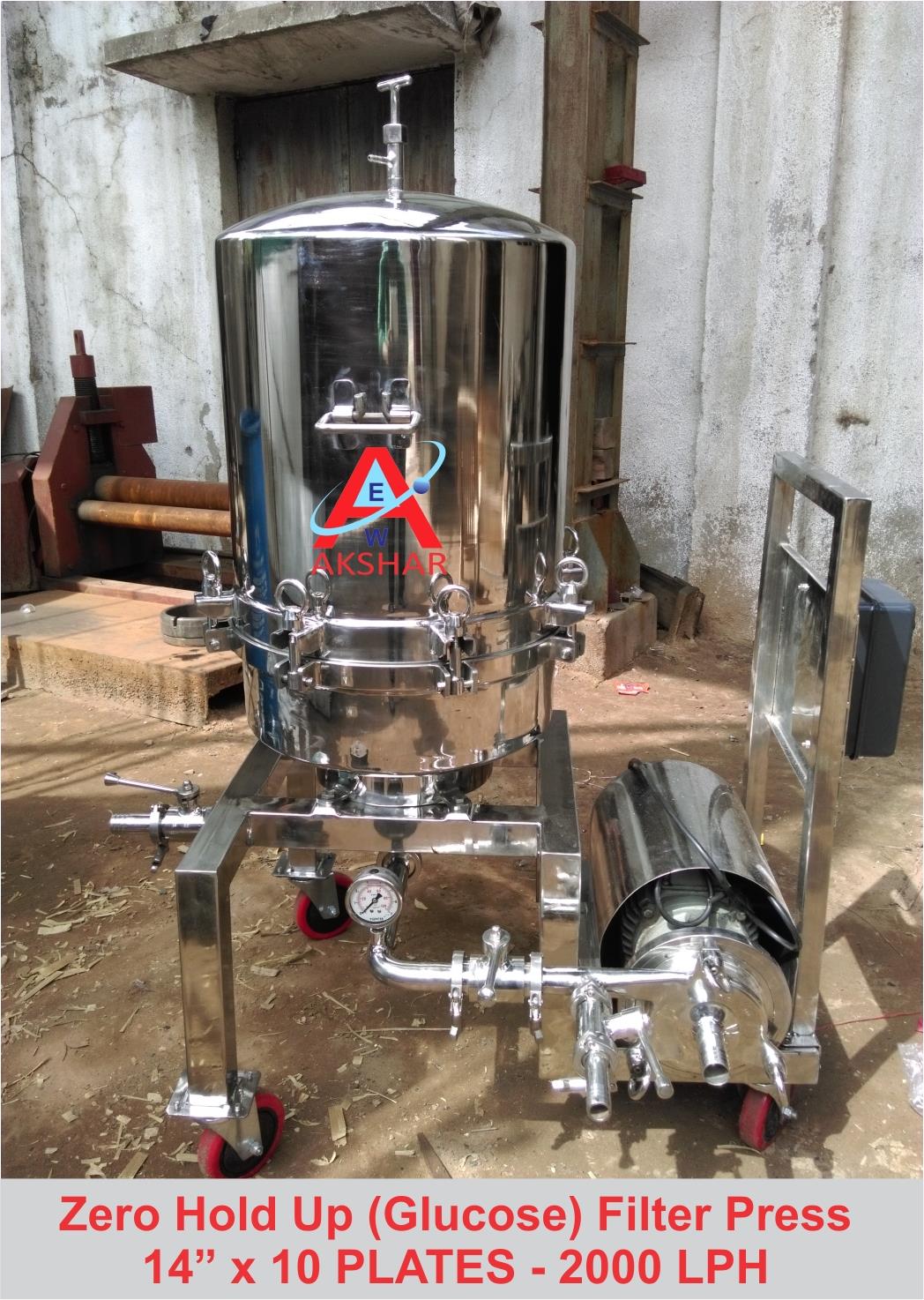

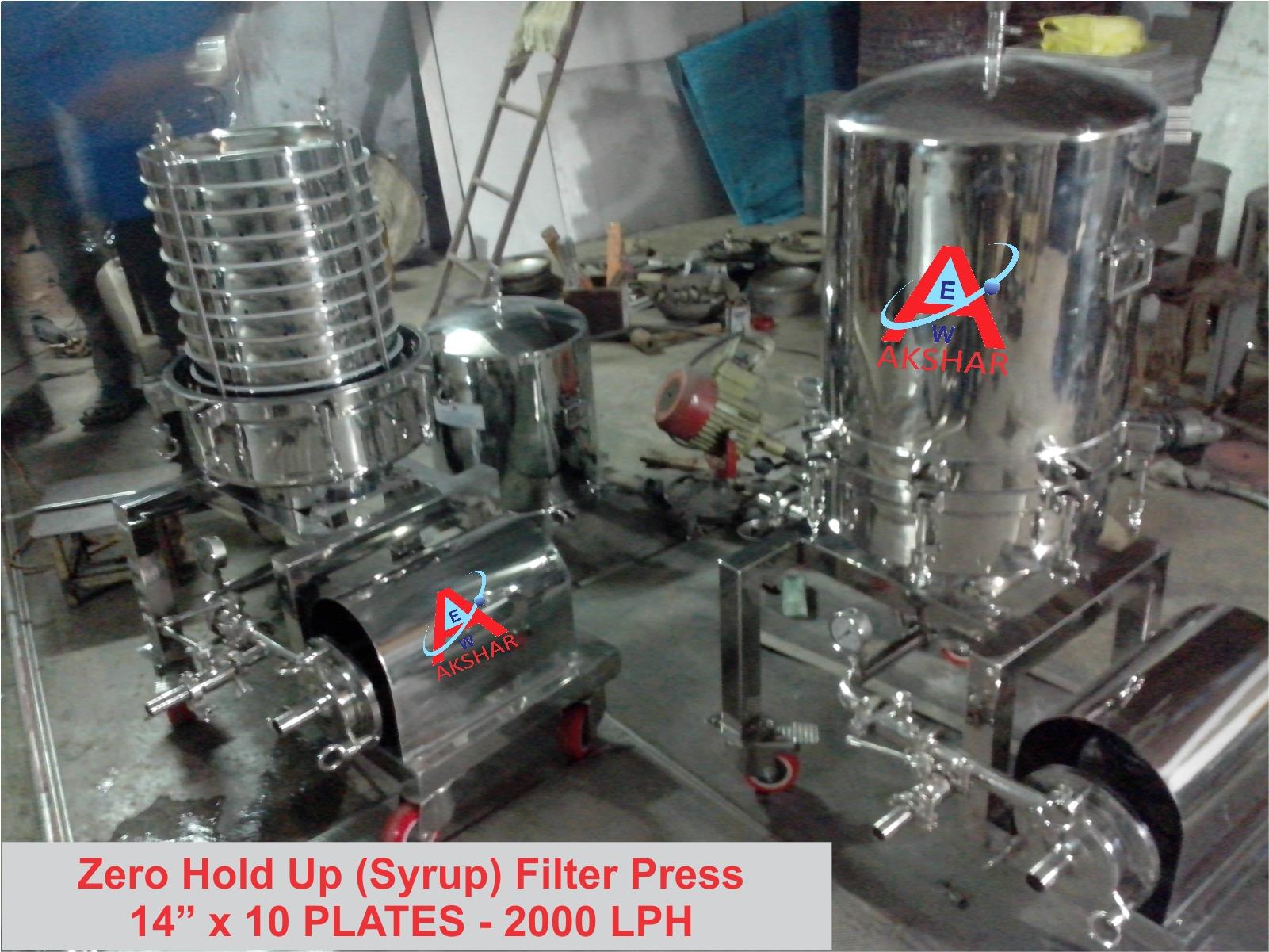

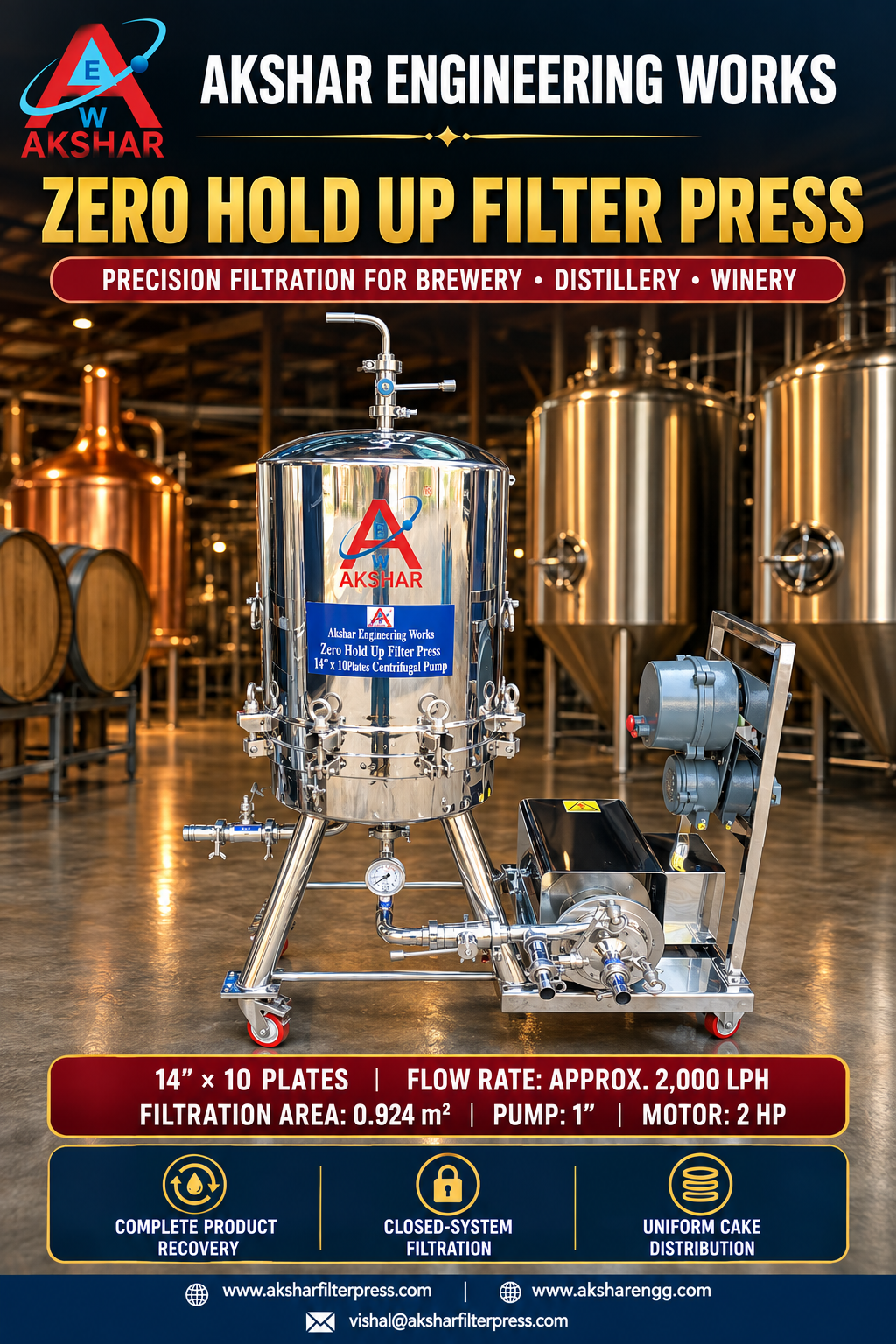

| AZFP1410 | 14 | 10 | 38 | 0.924 | 27.5 | 2000 | 1.0" | 2.0 |
| AZFP1412 | 14 | 12 | 38 | 1.156 | 29.95 | 2300 | 1.0" | 2.0 |
| AZFP188 | 18 | 8 | 50 | 1.27 | 47.0 | 2500 | 1.5" | 3.0 |
| AZFP1810 | 18 | 10 | 50 | 1.62 | 54.2 | 3200 | 1.5" | 3.0 |
| AZFP1812 | 18 | 12 | 50 | 1.842 | 67.2 | 4000 | 1.5" | 3.0 |

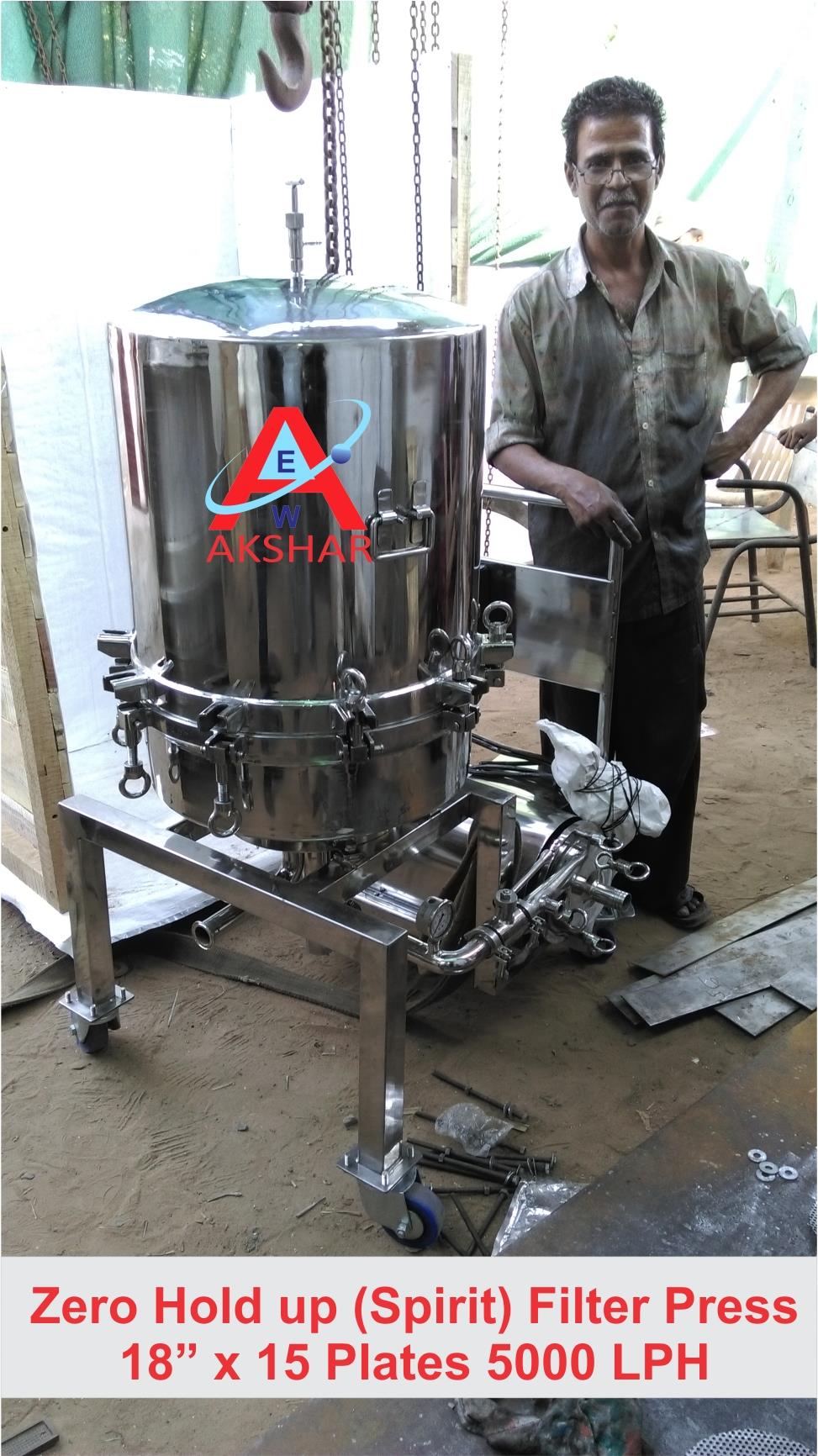

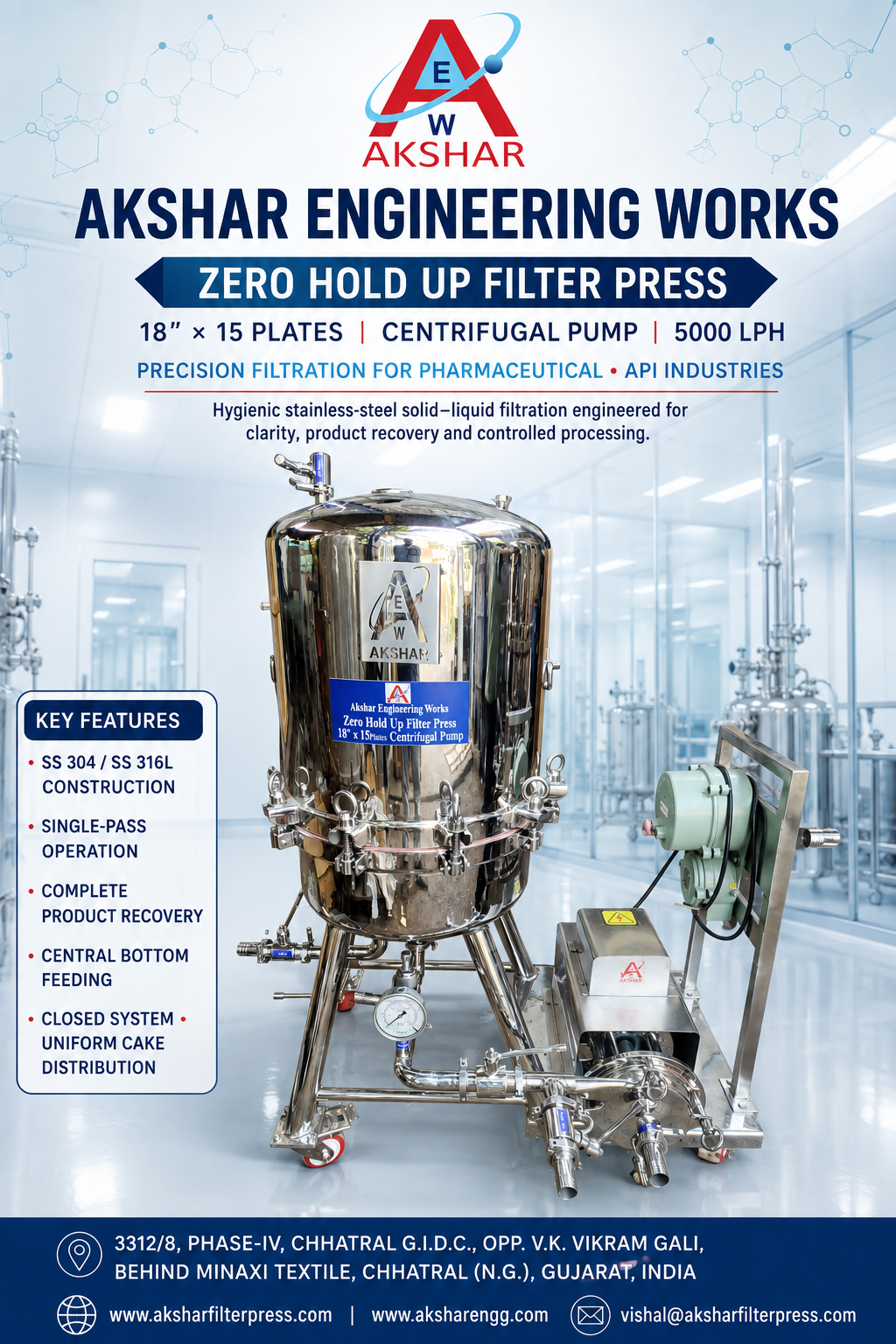

| AZFP1815 | 18 | 15 | 25 | 2.27 | 37.5 | 5000 | 1.5" | 3.0 |
| AZFP1818 | 18 | 18 | 25 | 2.72 | 50.0 | 5500 | 1.5" | 3.0 |
| AZFP1818 | 18 | 18 | 50 | 2.77 | 100 | 5500 | 1.5" | 3.0 |
| AZFP1823 | 18 | 23 | 25 | 3.45 | 57 | 6800 | 1.5" | 3.0 |
| AZFP2412 | 24 | 12 | 50 | 3.37 | 110 | 6700 | 2.0" | 5.0 |

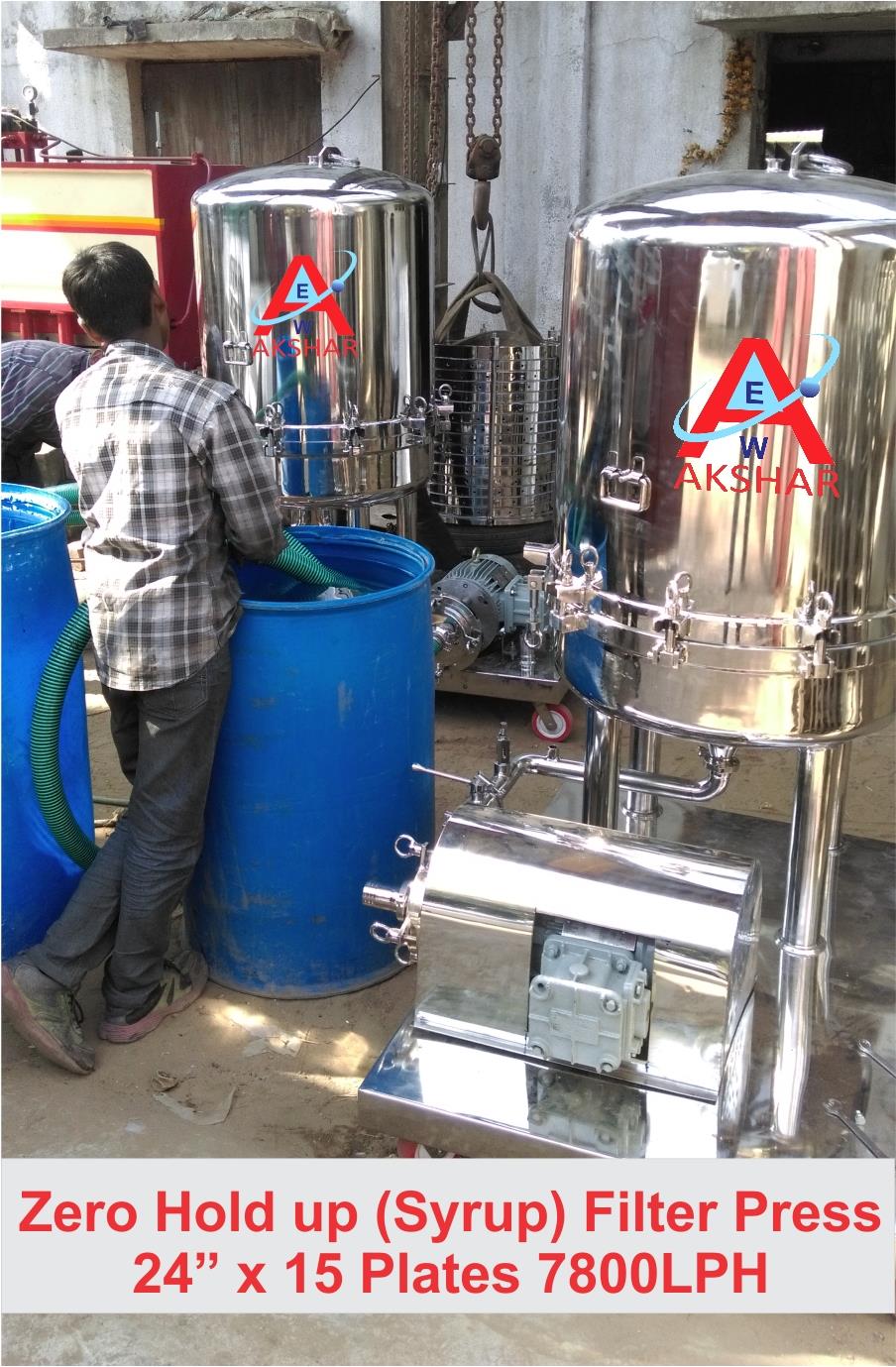

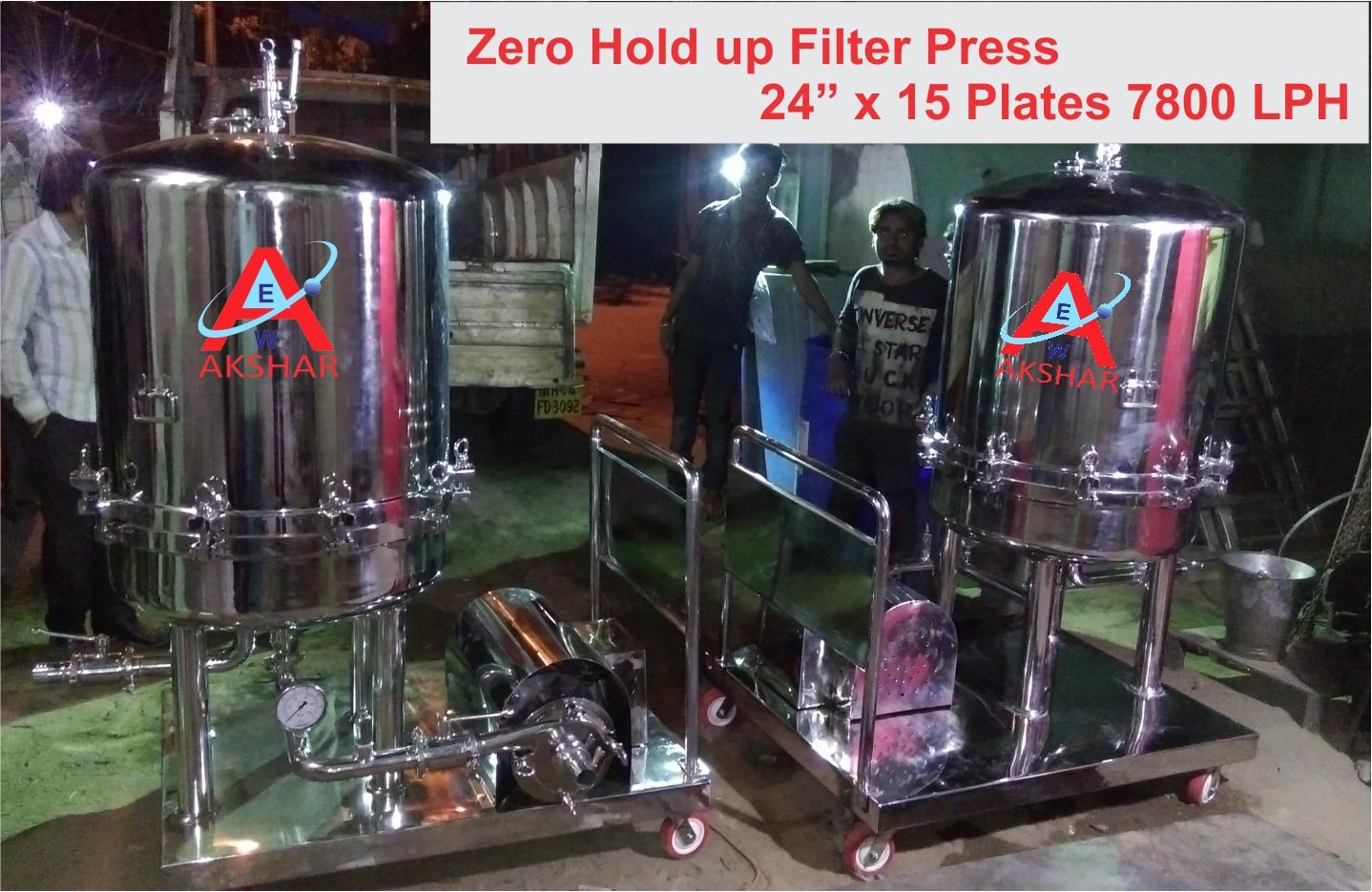

| AZFP2415 | 24 | 15 | 50 | 4.21 | 123 | 7800 | 2.0" | 5.0 |
| AZFP2418 | 24 | 18 | 38 | 5.04 | 130 | 10000 | 2.0" | 5.0 |
| AZFP2423 | 24 | 23 | 38 | 6.34 | 165 | 12500 | 2.0" | 5.0 |
| AZFP337 | 33 | 7 | 38 | 4.2 | NA | 8000 | 2.5" | 7.5 |
| AZFP3310 | 33 | 10 | 38 | 5.6 | NA | 11000 | 2.5" | 7.5 |

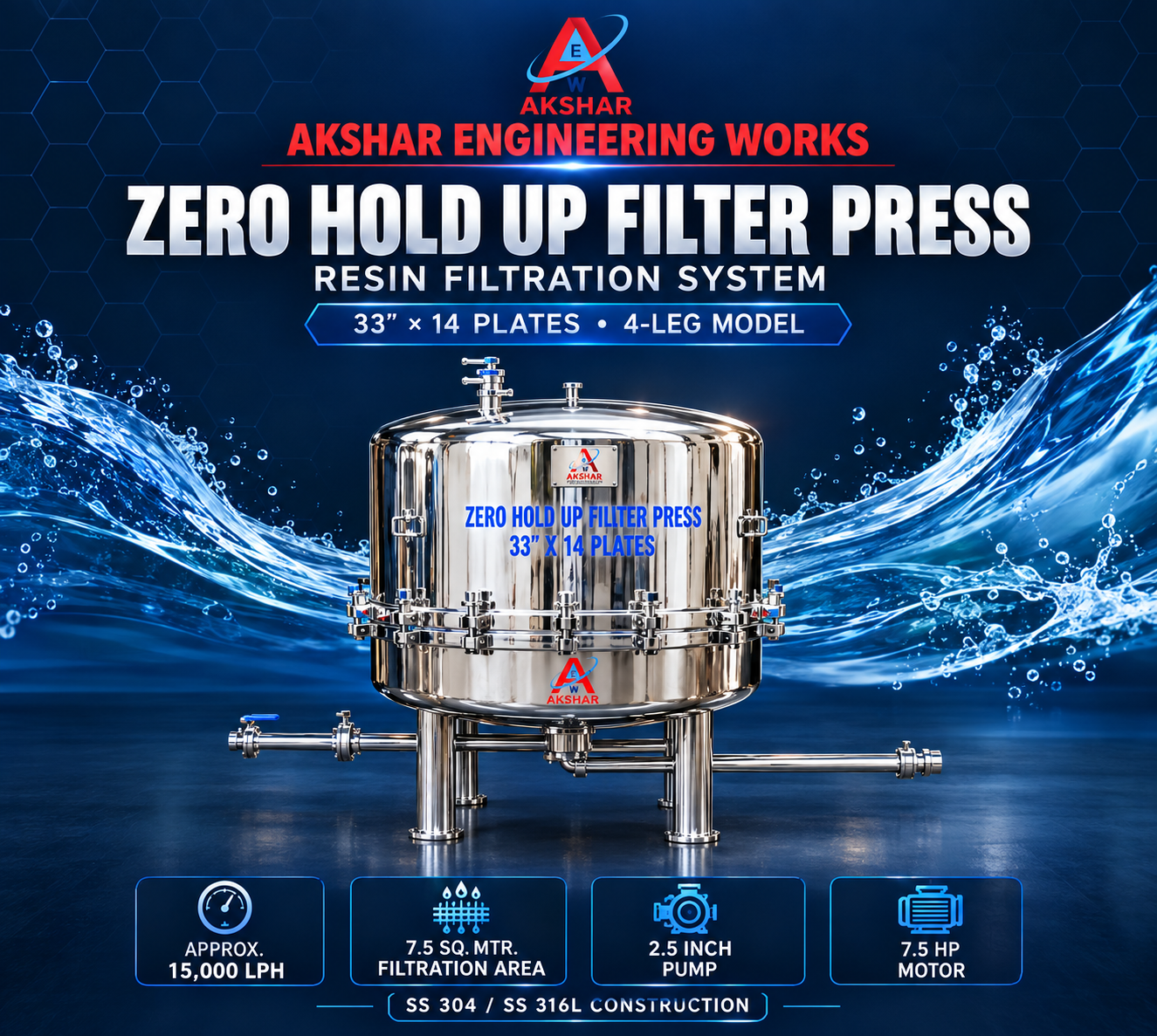

| AZFP3314 | 33 | 14 | 38 | 7.5 | NA | 15000 | 2.5" | 7.5 |
| AZFP3323 | 33 | 23 | 38 | 14.0 | NA | 25000 | 2.5" | 7.5 |
-
Superior clean filter tank processing
-
Complete filtration process without any hold up
-
Flame Proof Motors & Starters
-
Centrifugal pump, Gear pump, Lobe pump for different liquid filtration
-
Fast & easy removal of filter plate & cartridge due to top dome construction
-
Hence easy removal of cake
-
3 Phase & Single Phase Motors available
-
Compounding Pressure Gauge, Air Valve & Safety Valve.
Trusted by 250+ Satisfied Clients
Our Certificate
Good Manufacturing Practice (GMP & BMG)
Certificate
Quality Certificate (BMG)
Certificate
ISO 9001:2015
Certificate

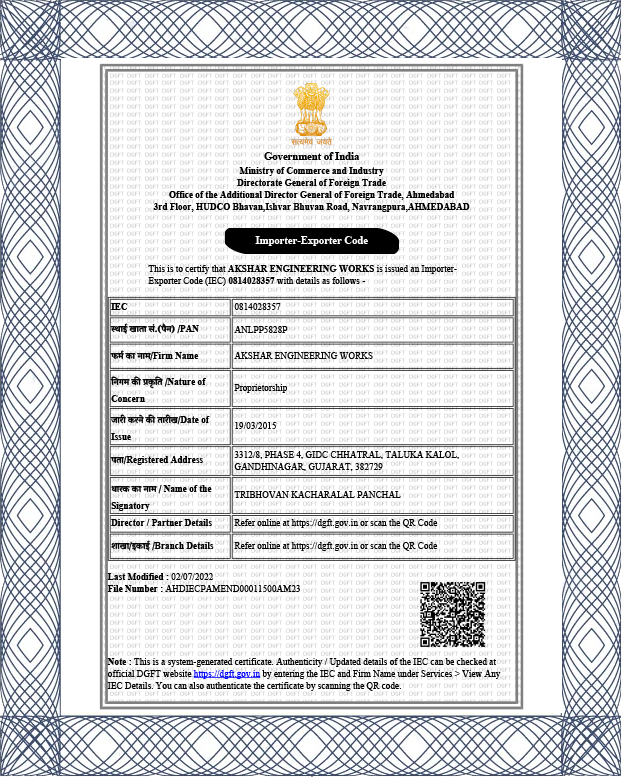

Certificate of IEC
Certificate
MSME
Certificate

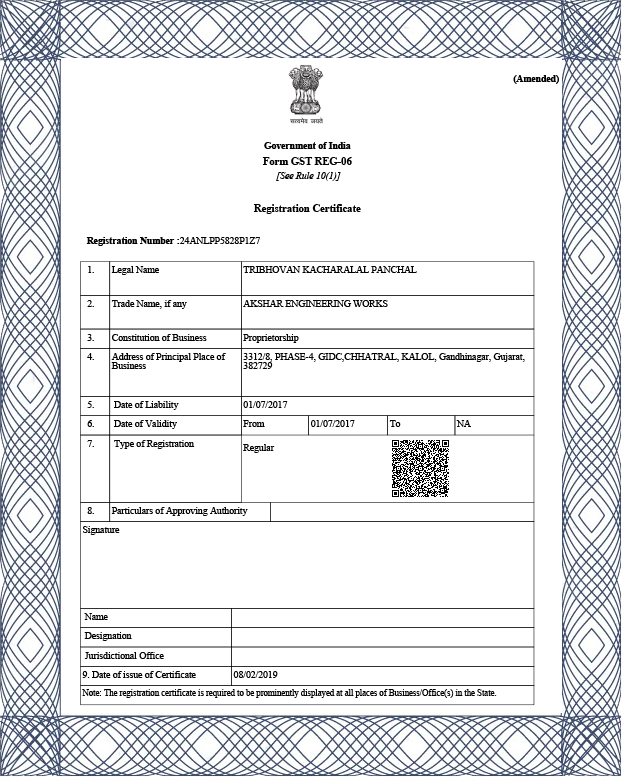

GST
